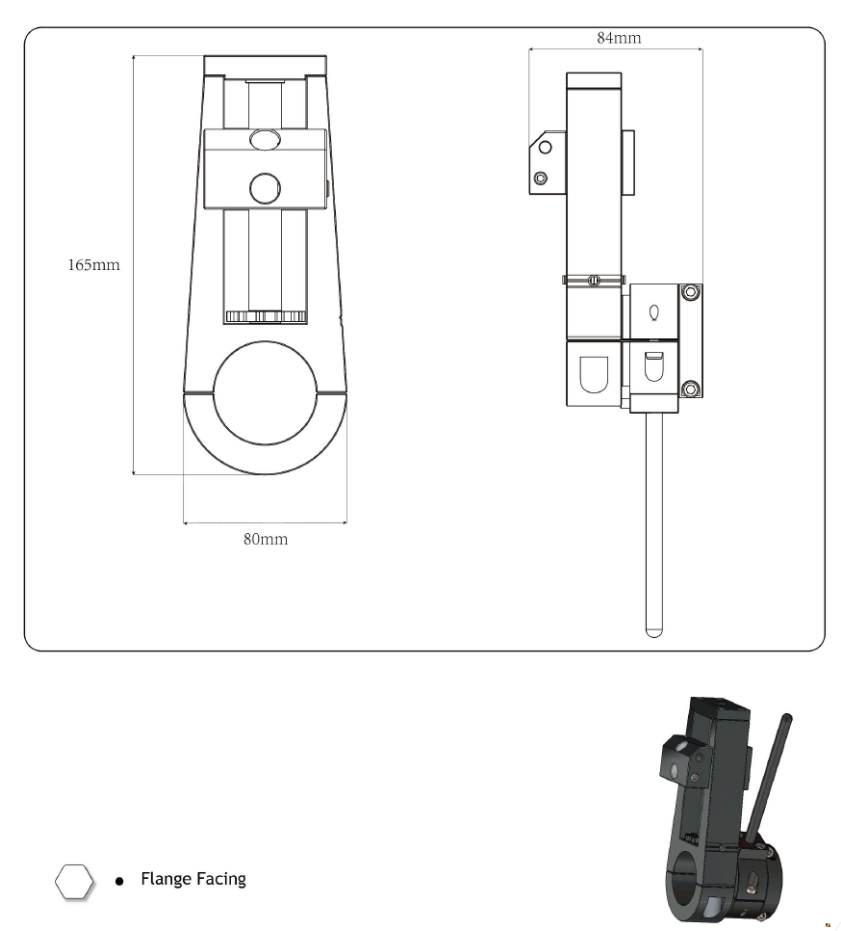

F50 Portable Flange Facing Machine
Product Item: F50
Category: Accessories
Precise flange facing operations
Portable design for on-site use
Perfect sealing surface finish
S Power
The F50 flange facing machine delivers precise sealing surface machining for pipeline flanges. Its portable design enables on-site repair without disassembly, saving time and costs.
Portable Flange Facing Without Dismantling the Line
The F50 portable flange facing machine refaces the sealing surface of pipe flanges, valve bodies and heat exchanger nozzles from 50 mm to 500 mm outside diameter. The machine is mounted directly on the workpiece, so the flange is machined in place without cutting the line, removing the valve or transporting the component to a workshop.
A worn or scored flange face is a common cause of gasket leaks at joints that are opened during maintenance. By facing the surface again on site, the sealing face is restored to a flat, even condition that a gasket can seat against, which shortens the shutdown and avoids replacing the whole flange.
A flange face that is scored, pitted or no longer flat lets the gasket leak under pressure or temperature cycling. Re-facing the surface restores a smooth, even seat for the gasket and is usually far quicker than cutting out and replacing the flange. The F50 is used by pipeline contractors, valve service companies, shipyards and plant maintenance teams who need to bring a joint back into service during a shutdown window.
F50 Machine Data
| Flange diameter range | 50 mm - 500 mm outside diameter |
|---|---|
| Machining operation | Facing of gasket sealing surfaces |
| Typical workpieces | Pipe flanges, valve bodies, heat exchanger nozzles, pump and compressor casings |
| Setup | Mounted on the workpiece on site, no dismantling |
| Result | Flat, even sealing surface for gasket seating |
| Portability | Compact portable design for field use |
Where the F50 Is Used
- »Pipeline and spool flange faces
- »Valve bonnets and valve bodies
- »Heat exchanger and condenser nozzles
- »Pump and compressor casing flanges
- »Shipboard piping and deck machinery joints
- »Power plant and refinery piping during shutdowns
- »Repair of scored or pitted gasket seating surfaces
Machine and Spare Part Options
Portable Line Boring and Welding Machine
For bore and bushing repair on the same shutdown scope.
PL50 Portable Shaft Lathe
Turns journals and bearing seats on site.
Portable Line Boring Machine S50/55-300
Handles larger bore repair jobs from 55 mm to 300 mm.
Insert Tool Holder
Tool holder for the inserts used across the SPOWER machining range.
Supply, Training and After-Sales Support
- •The F50 is supplied ready for field work with the mounting and cutting components required for flange facing.
- •English instructions cover mounting on the flange, setting the tool and taking the facing cut.
- •Support helps confirm the flange diameter and condition before the machine is selected.
- •Wear parts and tooling are available as separate items so the machine can be kept in service.
- •Combined quotations are available when flange facing is needed alongside line boring or shaft turning.
Frequently Asked Questions
What flange diameter can the F50 machine?
The F50 covers flange outside diameters from 50 mm to 500 mm.
Does the flange have to be removed from the line?
No. The machine mounts on the workpiece, so the sealing surface is faced on site without cutting the pipe or removing the valve.
Why is the flange face machined rather than replaced?
A scored or pitted sealing surface is a common cause of gasket leaks. Facing the surface again restores a flat, even seat for the gasket and avoids replacing the flange during a shutdown.
